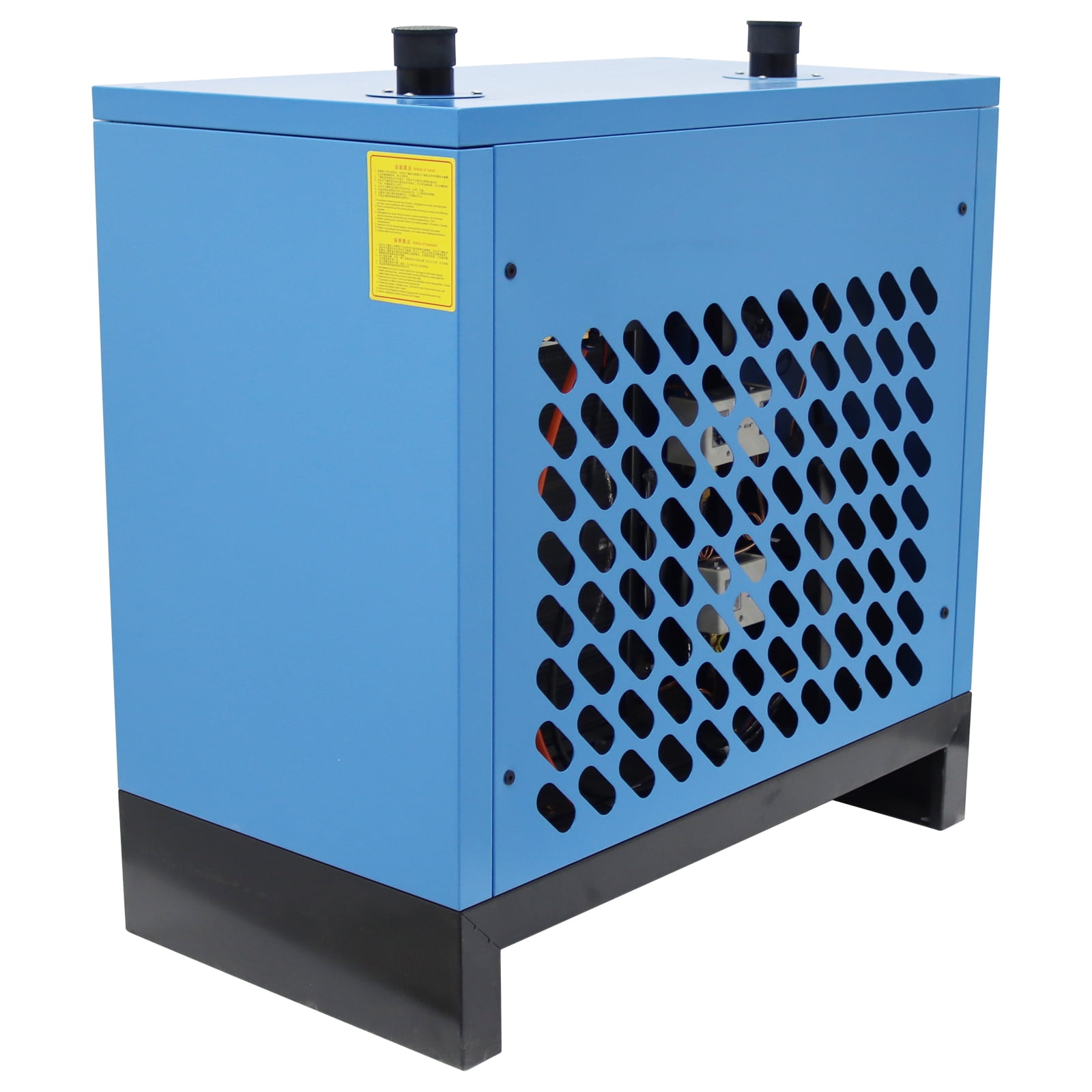

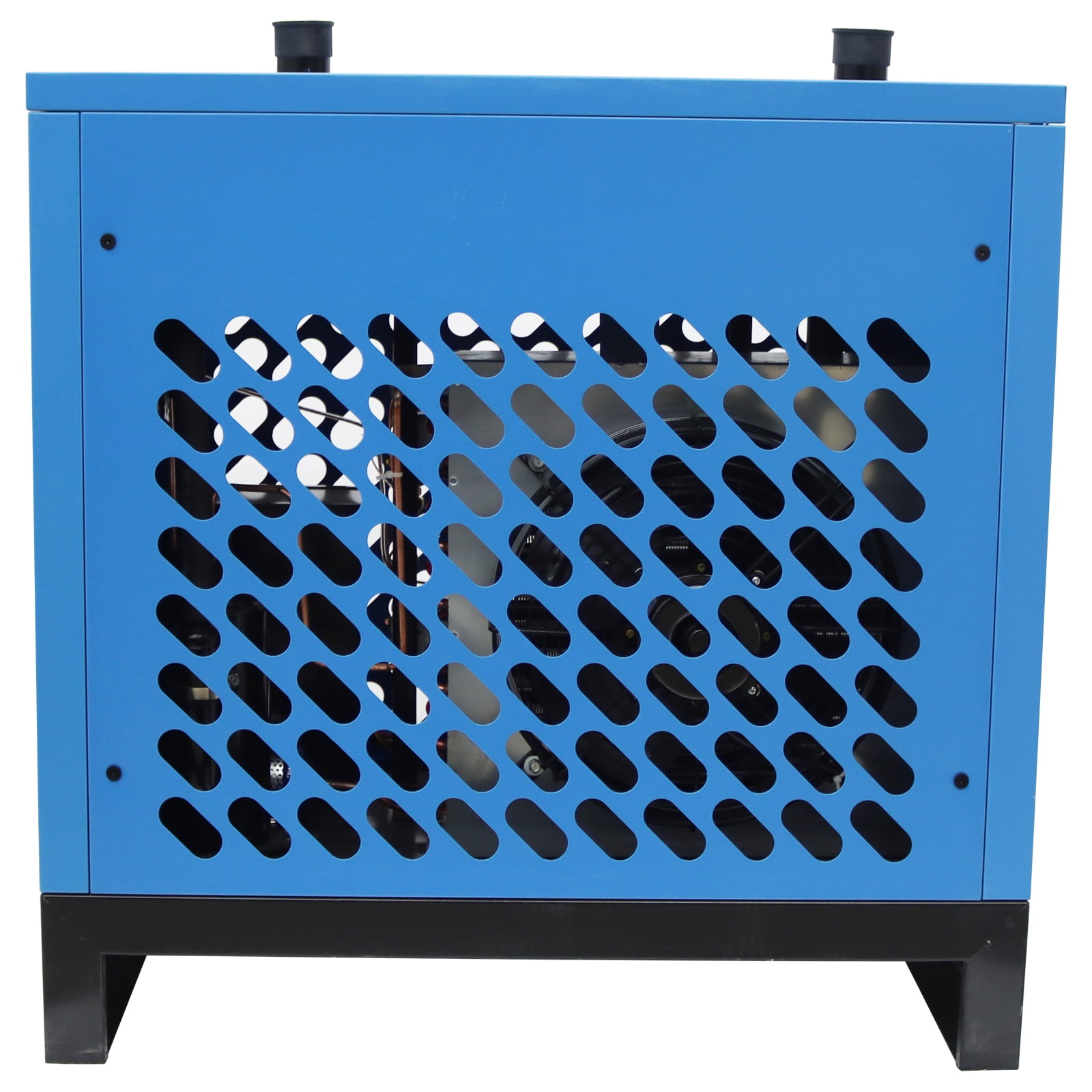

50C Refrigerating Dryer Air Compressor Refrigerated Freeze Dryer with 50HP Air Compressor and Filter 220V

Parameter: <br>Refrigerant Type：R410A <br>Voltage：220V <br>Power：1000W <br>Interface pipe diameter: ZG1.5 <br>Air capacity: 6.5m³/min <br>Work pressure: ≤1.0Mpa <br>Inlet temperature: ≤45℃ <br>Dew point temperature: 2-10℃ <br> <br>Operation method: <br>1. Check whether the refrigeration system pressure of the machine is normal. Check that the ball valve at the front of the automatic drainage valve is open. <br>2. Send the power supply to the control box, press ON/OFF button switch ON button, machine contactor suction, compressor operation. At this time, the refrigerant low pressure gauge pointer should indicate that it is in the range of 60~85Psig. If the load exceeds this range, adjust it. <br>3. After the compressor runs smoothly, the pressure of the refrigerant high pressure gauge rises to between 120 and 240psi. <br>When the high pressure of the refrigerant is higher than this range, check whether the heat dissipation of the condenser is good, and whether the inlet temperature of the air compressor and the ambient temperature are too high. When the antifreeze switch is lower than 140Psig, the condensing fan stops running to increase the pressure to ensure the normal operation of the machine. If the machine is operated at low pressure for a long time, check whether the refrigeration system leaks. <br>4. Please turn off the air compressor before shutting down. After turning OFF the air compressor, press the ON/OFF switch to turn off the power supply of the machine. <br> <br>Note: <br>1. Please turn on the cold dryer for about 5 minutes before using the gas. <br>2. It is recommended that the side of the power cable connected to the machine should be against the wall, with the front side at least 1 meter away from the wall and the back side at least 20 cm away from the wall. <br>3. The drain time can be adjusted. If it needs to be adjusted longer, the SEC key on the left can be adjusted to 2 seconds, and the MIN key on the right can be adjusted to 5 minutes (0-10 middle). <br>4. Be sure to wrap raw material tape or use liquid sealant when installing. <br>5. Different places have different Receptacles. Please note this plug and consult your electrician before purchase. <br>6. This machine needs to be connected to the power source for use by the customer. <br> <br>Item Number: 033237 <br>1* 50C Refrigerating Dryer Air Compressor Refrigerated Freeze Dryer

• The air dryer is used for removing moisture, oil and particle impurities from compressed air by refrigerating the compressed air. After refrigerating, the gaseous mixture of moisture, oil and magazines refrigerated and separated from dry air.
• The air refrigerated drying machine has 3 filters and one is connected to the air inlet and the other two are connected to the air outlet. The pipes needed to connect the filters are also included.
• The compressed air drying machine is adopts high quality compressor, copper radiating tubes and powerful fans for fast cooling.
• Easy installation with the compact design is ready to use with a small footprint, matches the compressor's displacement, saving energyeasy maintenance and improved reliability.
• The air dryer has a simple control panel - one switch to start the machine.
